The growing automation device is a great assistant for a city farmer, which help you get a harvest easily because the OverGrower controls all the necessary parameters and saves you the extra trouble of hydroponic system!

Each OverGrower is designed for one growing zone or for one type of plant that is at the same growth stage.
The device can control the growing area from one small hydroponic system to a farm about the size of 10 000 m2!
Special conditions for the place of growing plants is not required.

OverGrower
FEATURES

Entrust the growing of plants to OverGrower! The device has a system of 8 sensors, takes into account all parameters of the nutrient solution and the environment and corrects them, creating optimal conditions for the best growth and development of a plant.
The OverGrower is embedded in the ready-assembled hydroponic system.

Mixing components of the solution occurs by based on the requirements of the plant growth stage.
It is possible to use fertilizers any firms, destined only for hydroponics.

pH

Regulation of acidity of solution occurs by making special pumps with acid or alkali. Based on these pH sensors, pumps control the level of acid-base balance to optimum values.

TDS/EC

Regulation of nutrient solution of trace elements is performed by making a proportional multi-nutrient of fertilizers using the pumps. Based on the TDS sensor indications, pumps, proportionally adjusted to mineralization level of desired value indicating a concentration measurement units «ppm». It is possible to use of 1-, 2- and 3-component of fertilizers.

Solution temperature

The decrease of temperature of the nutrient solution in a tank

Air temperature

It’s possible to connect an air conditioner or an air heater for air controls

Air humidity

Automatic activation of an air humidifier according to the specified settings

Lighting

Control and monitor of lamps in the mode of supplementary lighting or completely artificial lighting as scheduled.

A water level in a tank

Controlled by a level sensor in a tank; monitor of water pump for water supply

CO2 concentration

A CO2 supply according to preset settings, automatic activation of air ventilation to reduce carbon dioxide levels.

OverGrower
NEW GENERATION

We have developed a new generation of hydroponics and aeroponics growing automation systems.
OverGrower® opens up new possibilities for industrial plant growth.

Universal integrated automation for city farms, greenhouses, small, medium and large agro-industrial complexes.

Ability to control with AirGrow® wireless technology.

AirGrow® Base Station - a wireless access point connects to the device and controls the AirGrow® Module radio modules at a distance of up to 100 meters (up to 500 m with direct visibility).

Wireless control of devices, devices, sensors, pumps for simple and effective integrated automation of city farms and greenhouses.

Climate control - OverGrower new generation

Easy customization of automation to your needs.

Connect an unlimited number of devices in any order.

Several mortar units, sensor blocks, sockets, pumps and other various monitoring and control devices can be connected to the device.

Подключение устройств расширения возможностей OverGrower

The hydroponics automation complex is a modular system.

Enhanced OverGrower® capabilities with additional sensor and control elements while scaling production.

Сити-ферма под управлением комплекса автоматизации OverGrower

Improved technology allows one OverGrower® device to control several growing zones and climatic zones, creating optimal conditions for growing plants!

OverGrower
EXTENSION MODULES

Available for order!

CLIMATE-01OG climate control module

LEARN MORE

SOCKET-02OG device control unit module

LEARN MORE

SENSORS-01OG solution sensor module

LEARN MORE

DOSER-01OG metering control pumps module

LEARN MORE

LEVEL-01OG level monitoring sensor module

LEARN MORE

AirGrow Base Station and AirGrow Module radio modules

LEARN MORE

pH Electrode for OverGrower

LEARN MORE

VIDEO REVIEW OF THE FUNCTIONAL OF THE INSTRUMENT

Часть 1 - Сетевое подключение

OverGrower device functions. Part 2 - Cloud service

Новые возможности Нового OverGrower

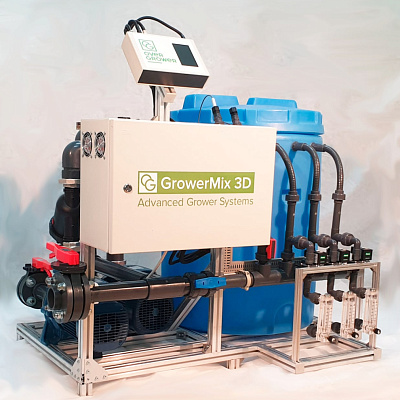

Многозональный растворный узел

REMOTE CONTROL

The device has a user-friendly interface. You can monitor and control the hydroponic system using the touch screen of the main unit, as well as the web interface from any device also.

To remote control of growing just connect the OverGrower to the Internet via cable. Access page has a high level of security.

The OverGrower can work without connecting to the Internet, all data are rendered on the touch display.

Manage one or more OverGrower devices via the cloud service Cloud.OverGrower.ru!

Upload available Growing Profiles created by professional agronomists to your device. The acid-base balance, lighting mode, temperature, CO2, and other parameters for each growth phase are now configured for you!

Set up email notifications in the cloud service's personal account.

TO CLOUD

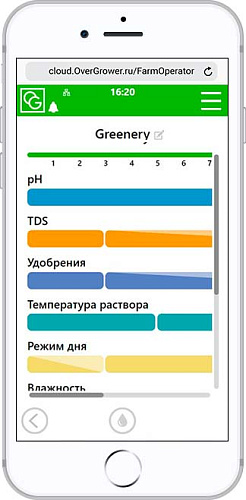

Growing profile

Growing profile contains parameters of plans environment!
You can use a ready-made growing profile created by professional agronomists, or you can create your own by customizing it to your liking.

Setup the environment parameters for the whole growth cycle.
From seeds to technical ripeness!
Apply smooth change of environment parameters.
Eliminate maximum adverse and stressful situations for plants!
Asynchronous setup of the environment parameters.
Asynchronous addition of setup blocks on the timeline!

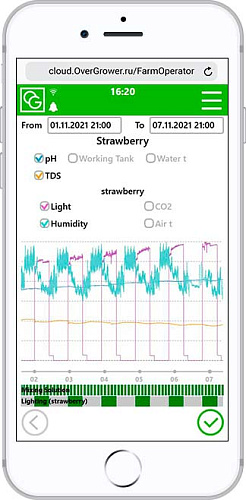

Сharts

Thanks to a visual image of a parameter changes on the charts, you can compare and analyze the processes. You can see both current and completed growing.
You can view charts for both current and completed growing!

Charts for several growing areas.
All solution and climatic areas in one interface!
Completely customizable time range.
From one minute to days or months!
Equipment operation chart.
Visible effect on environment characteristics!

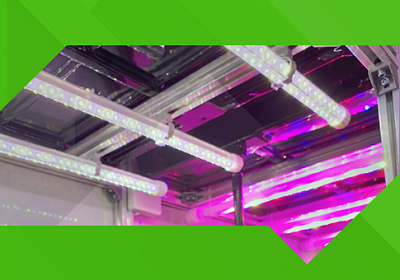

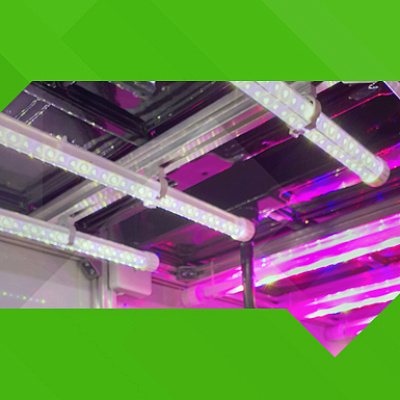

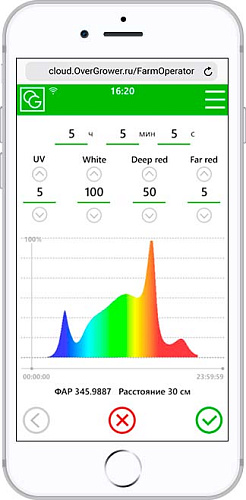

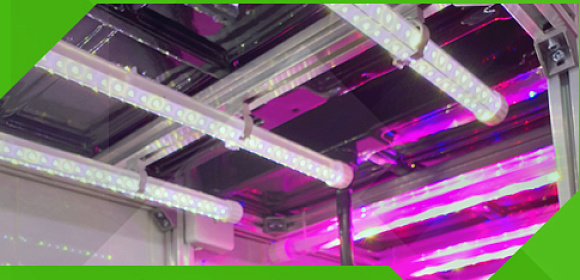

LED lighting customization

A dynamic control system can modify lighting parameters to alter plant physiology to achieve results such as delayed flowering, an increase in biomass, accelerated photosynthesis, and many other interesting signaling responses plants.

Create a unique environment to meet the specific demands of any crop being grown!
Direct spectral control is available to simulate the seasons, growth cycles and photobiological reactions!

PACKAGE CONTENTS

1. Device with a software already installed.
2. pH sensor - 1 pc in a set (periodicity of maintenance is once a month).
3. Combined TDS/EC + solution temperature sensor (periodicity of maintenance is once a month)
4. Solution level sensor.
5. Climate control module CLIMATE-01OG, combined sensor - air temperature + humidity + illumination + CO2 concentration sensor.
6. Device control unit SOCKET-02OG of 2-output 110-220V* - 3 pcs
9. Power supply unit.
10. Working manual with an access password to the user interface (supplied in the form of an electronic document).
11. Cultivation procedures (supplied in the form of an electronic document).

Warranty is 12 months.

Each socket of the module is designed for a maximum load of 1.5 kW on a 110-220V supply, or load switching is possible.

*Функция розетки в любой момент может быть переназначена на любую другую функцию из постоянно увеличивающегося списка возможностей.

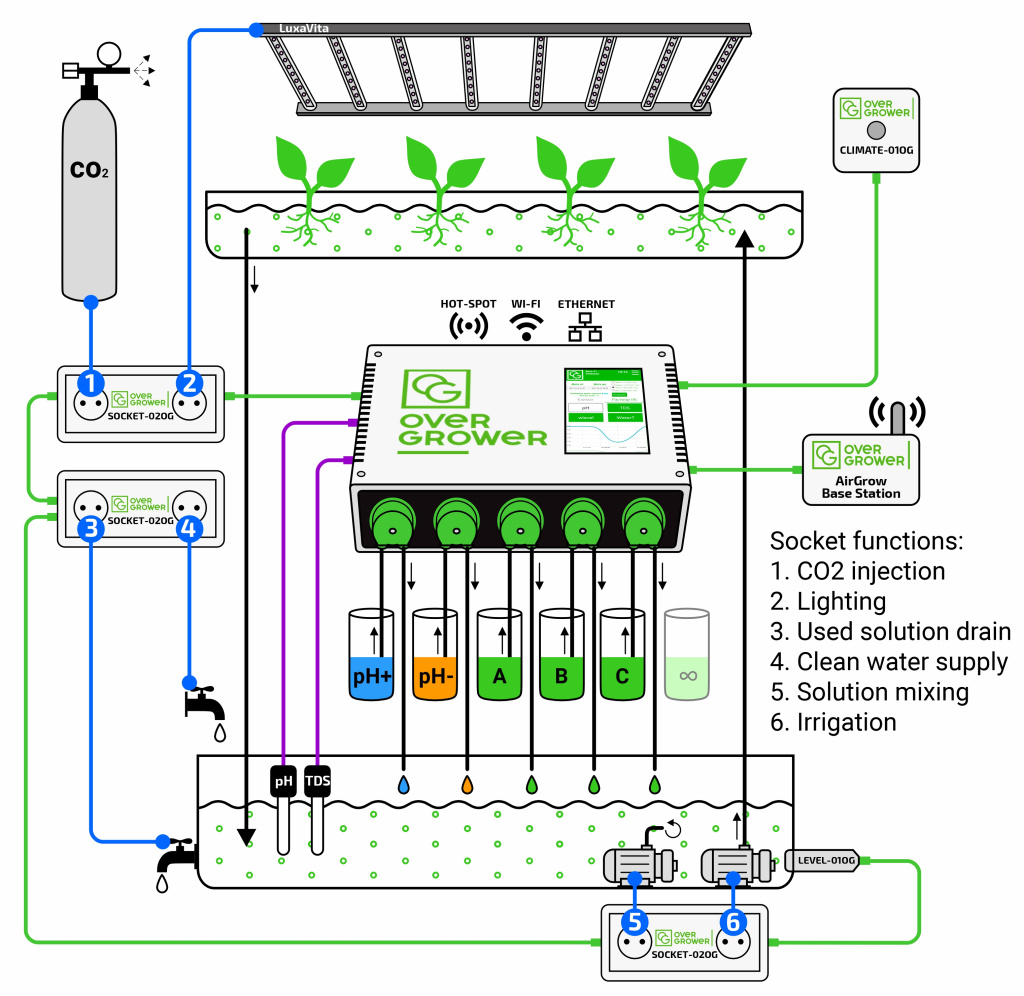

SOCKET-02OG module functions:

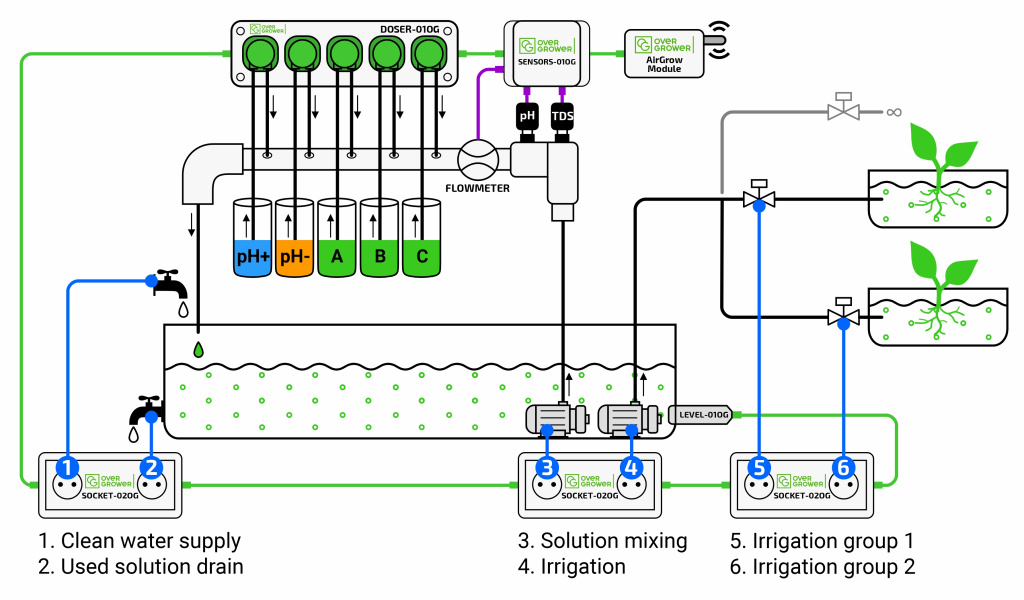

Solution Zone management:
- Cooling and heating of the solution
- Clean water supply
- Used solution drain
- Overflow from the preparation (mixing) tank into the working (irrigation) tank
- Solution mixing

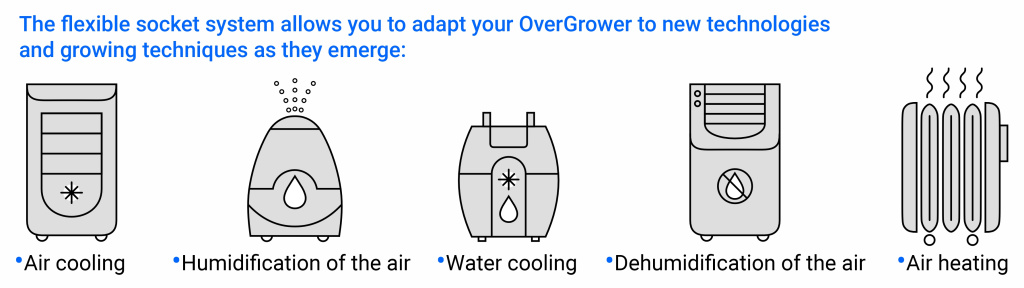

Climatic zone management:
- Lighting
- Lamp cooling
- CO2 injection
- Ventilation
- Cooling or heating of the air
- Humidification or dehumidification of the air
- Irrigation

Expansion modules for the growing automation device OverGrower

PRICE

Investments in equipment return after two successful harvests.
If all the conditions are met, the device guarantees a harvest that covers all costs.
By purchasing hydroponics automation system, you can customize it by yourself and serve up to 5 000 000 lettuce or 50 000 tomato bushes.
Прибор легко подключить и настроить самостоятельно, без привлечения программиста или технического инженера.

Беспрецентные возможности Нового Поколения OverGrower:

In case of volume increase, it is possible to adopt the device to individual needs
It is possible to adjust and correct the device to individual growing conditions.
