Precision Fertigation Unit GrowerMix

for greenhouses up to 2 hectares

Precision Fertigation Unit GrowerMix

for greenhouses up to 2 hectares

GrowerMix - the cultural solution mixing system in the irrigation water flow with an integrated mixing tank for maximum precision in preparation of hydroponic solution.

Automated fertigation machines GrowerMix with various productiveness ensure the production of high quality solution.
Homogeneous mixture and maximum precision when mixing fertilizers.
Achieving the required pH and EC values in a short time.

Solution delivery with the ability to irrigate multiple groups of vegetables.

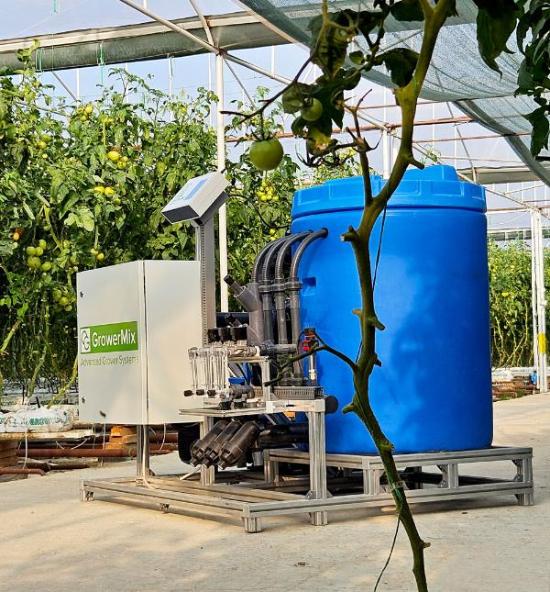

Fertigation machine GrowerMix Unit delivers nutrients to the root zone

Greenhouse irrigation management using an OverGrower computer with pre-installed remote-control software.

Selection of 1 to 20 fertilizer application channels according to farmer's needs.

Choice of channels for fertilizer according to irrigation system and crop needs.

GrowerMix
Technological capabilities

Fertigation machine for direct installation onto the main line.
The irrigation system is pressurized by a water pump, which is part of the solution unit.
Homogeneous mixture and maximum precision in fertilizer doses, reaching the required pH/EC values in a short time.
Suitable for greenhouses and outdoor growing.

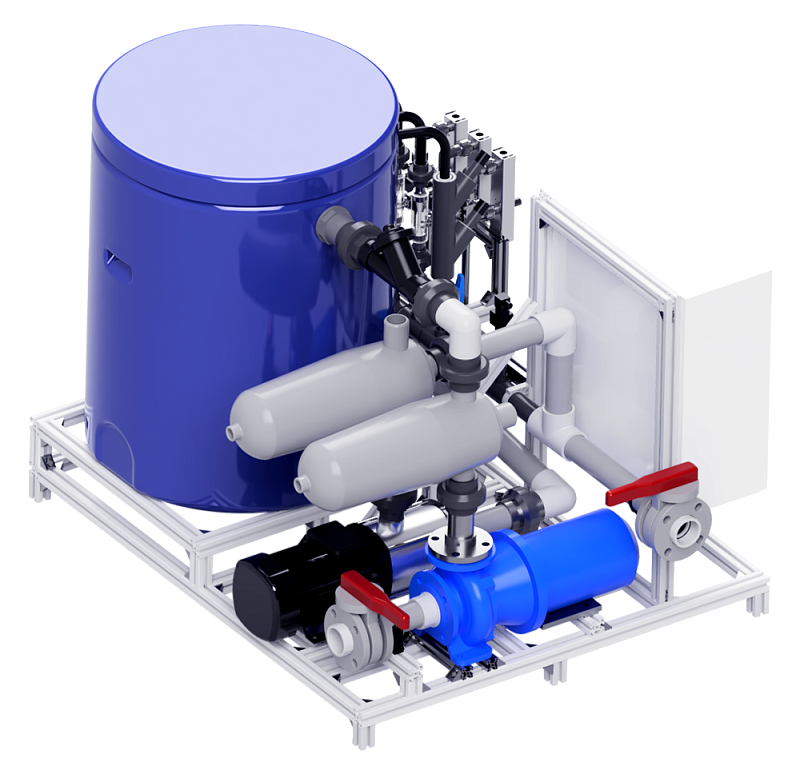

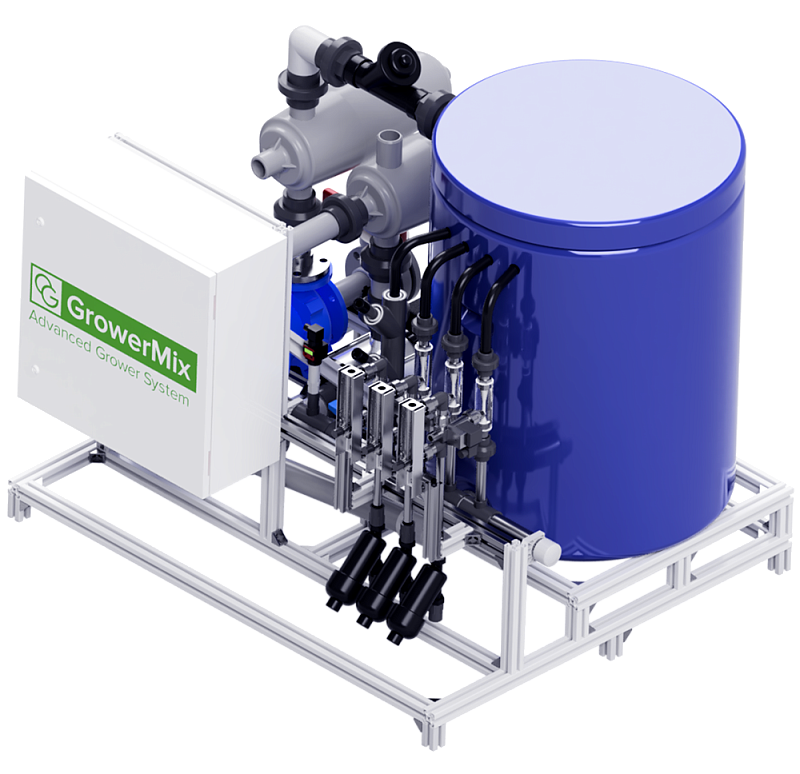

Fertigation machine GrowerMix design

OverGrower | GrowerMix
ADVANTAGES

Precise pH/EC control and fertilizer mixing before each irrigation

Operative dosing of any fertilizer for all kinds of crops

The system can be equipped with from 1 to 20 fertilizer channels, upon customer's request

Mixing tank for full control of fertilizer mixing

Pressurization of the irrigation system by an integrated water pump

Enhanced life time and fail-safe

Designed with durable and chemically resistant materials

Various expansion and scaling possibilities

Controlled by OverGrower Farm Management System

OverGrower | GrowerMix
TECHNICAL FEATURES

OverGrower computer - 110-220V AC power connection

Irrigation & clear water pumps - 220v single-phase or 380-415-480V three-phase supply

Up to 50, 150, 500 or 1000 l/h - concentrated fertilizer and acid dosing

Irrigation line flow - 1 to 60 m3/h

Irrigation line pressure - 2 to 10 bar

Control of up to 100 valves by OverGrower computer

GrowerMix
MAIN FUNCTIONS

Irrigation control:

Control of up to 100 valves by OverGrower computer
Fertilizer Recipes and Growing profiles
Flexible individual irrigation strategy

Measurement channels:

EC and pH measuring
Optional - Second set of EC and pH
Optional - Digital water metering sensor
Optional - Soil Moisture Sensor
Optional - Digital pressure gauge
Optional - Fertilizer counter

Pervasive control and management:

Intuitive user interface and graphs
Monitoring and improving your growing strategy
Access to the WEB-application from any device with an Internet browser

The GrowerMix fertigation machine includes:

High-productiveness pump for irrigation and fertilizer injection
Water flow-measuring unit
Fertilizer rotameters
Venturi injectors for fertilizer
Fertilizer dosing valves
Pressure protection for the pump, pressure gauges
Mixing tank for fertilizer
Controlled by OverGrower computer
Assembled on a frame made of durable aluminum profile

Homogeneous mixture and maximum precision when mixing fertilizers.
Achieving the required pH and EC values in a short time!
