DOSER-01OG metering control pumps module

Есть в наличии

Leave the preparation of cultural solutions to precision instruments!

Узнать больше

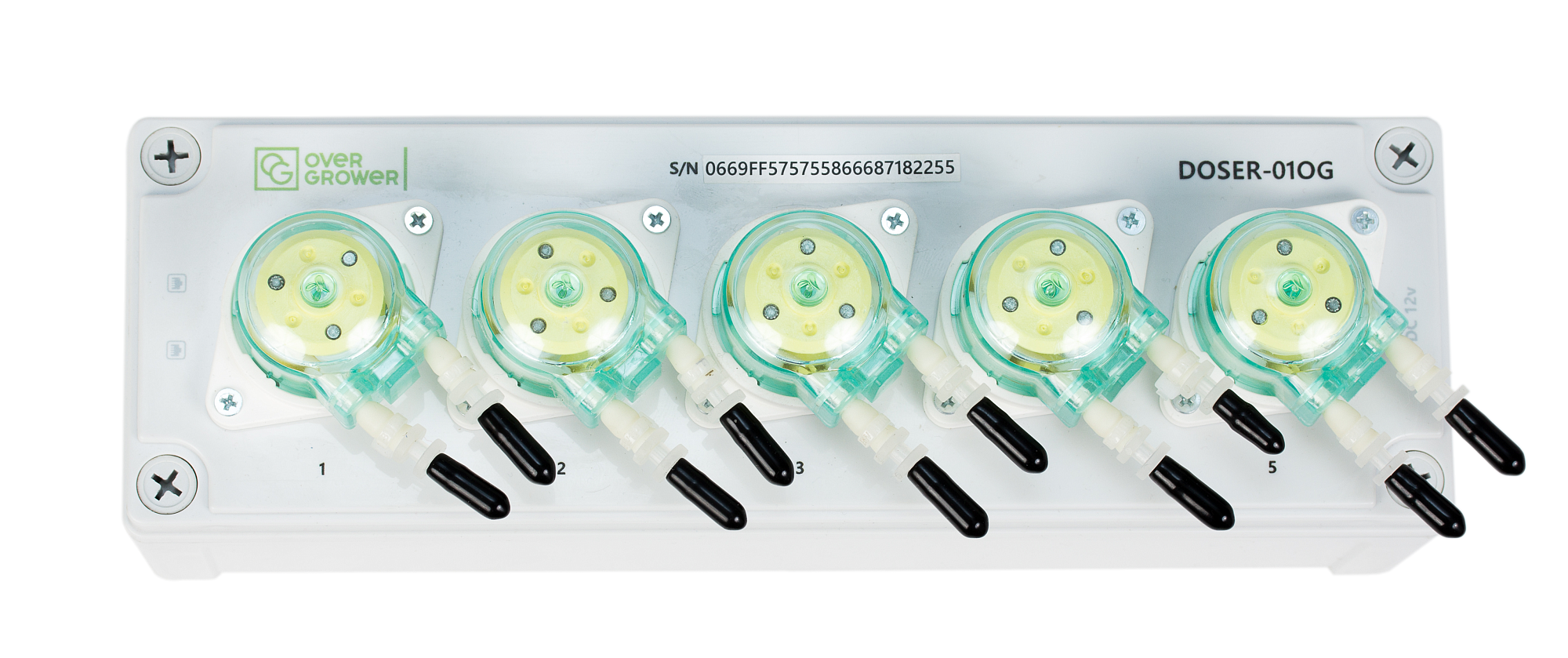

DOSER-01OG metering control pumps module

DOSER-01OG is a system of five independent flexible-hose metering control pumps for administering cultural solutions, pH regulators, stimulants and other fluids.

The reliable and durable pumps can accurately pump solutions with a vertical lift of up to 1.5m.
Allows precise mixing of fluid volumes at a constant flow rate of 90 ml per minute into tanks and lines at pressures up to 1.5 atmospheres.

Flexible-hose pumps successfully resist their own contamination even when dealing with viscous fluids.

The DOSER-01OG module works in tandem with the SENSORS series solution sensor devices to maintain ideal growing conditions.

DOSER-01OG module features
DOSER-01OG module features:
- Five independent metering control pumps
- Precision accuracy < 1ml
- Easily replaceable pump heads
- The ability to connect using AirGrow® technology
- Connection via 8P8C cable through a connector
- Rugged plastic case

Generic application:
Plug&Play
Dosing of fertilizers, pH regulators, stimulators and other fluids
Series modules connection via a connector.
The ability to connect using AirGrow® technology
DOSER-01OG module includes
● 1 pcs. DOSER-01OG metering control pumps module
● 1 pcs. 5m in length 8P8C patch-cord wire
● 1 pcs. DC12V power supply

Weight: 770 gr.
Dimensions (LxWxH): 250х80х100 mm.
